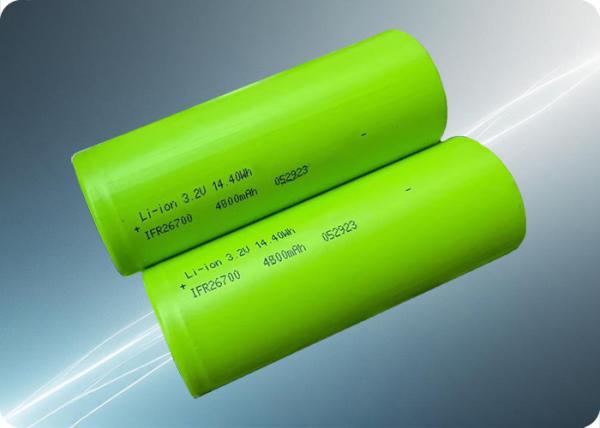

3.2V 4800mAh LiFePo4 Battery 14.4A Discharge 2000+ Cycles

Brand Name : OiD

Model Number : IFR26700N48N14.4

Certification : Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards

Place of Origin : China

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : Lifepo4 Rechargeable Battery

ODM : Free custom design for packs

Battery Type : 4800mAh Rechargeable

Superior Safety & Stability : Safe LiFePo4 Chemistry

Exceptional Lifespan : 2000+ cycles

High-Temperature Resistance : -20°C to 60°C

Eco-Friendly & Non-Toxic : Cobalt-free chemistry, non-hazardous materials

Cost-Effective Long-Term Value : Lower total ownership cost

Contact Now

IFR26700N48N14.4 LiFePo4 Battery 3.2V 4800mAh 14.4A Discharge 2000+ Cycles

Product Name

IFR26700N48N14.4 LiFePo4 Battery Cell

Advantages

  • High Discharge Capability: Supports up to 14.4A (3C) continuous output for power-demanding tasks.
  • Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
  • Wide Temperature Range: Reliable operation from -20°C to 60°C.
  • Safe LiFePo4 Chemistry: Inherent stability reduces thermal runaway risks.
  • Efficient Charging: 0.5C (2400mA) rated charge current.

Specifications

Parameter

Value

Model

IFR26700N48N14.4

Nominal Voltage

3.2V

Nominal Capacity

4800mAh

Energy

15.36Wh

Internal Resistance

≤25mΩ

Max Continuous Charge Current

2400mA (0.5C)

Max Continuous Discharge Current

14400mA (3C)

Charging Voltage

3.65V

Discharge Cut-off Voltage

2.0V

Weight

114g

Dimensions (Diameter × Height)

26.5mm × 70.5mm

Cycle Life

Cycles

Capacity Retention

Test Conditions

1000 cycles

≥90%

0.5C Charge/Discharge, 25°C

2000 cycles

≥80%

0.5C Charge/Discharge, 25°C

Operating Temperature Range

Mode

Temperature Range

Max Current (Charge/Discharge)

Charging

0°C to 45°C

2400mA (0.5C)

Discharging

-20°C to 60°C

14400mA (3C)

Discharge Curve

3.2V 4800mAh LiFePo4 Battery 14.4A Discharge 2000+ Cycles

Certifications

  • Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

  • Compact Design: Slim 26700 form factor (26.5mm diameter) for space-constrained applications.
  • Low Self-Discharge: <3% monthly loss during storage.
  • Durable Construction: Robust casing for mechanical resilience.

Applications

  1. Portable Electronics: High-drain devices like LED flashlights and handheld scanners.
  2. Light Electric Vehicles: Electric skateboards, compact e-bikes, and mobility scooters.
  3. Renewable Energy Storage: Small solar panels and portable wind turbines.
  4. Medical Devices: Battery-powered medical monitors and portable equipment.
  5. IoT & Sensors: Long-life power for remote sensors and wireless devices.

3.2V 4800mAh LiFePo4 Battery 14.4A Discharge 2000+ Cycles

Usage Warnings & Precautions

  • ⚠️ Never charge above 45°C or discharge below -20°C to avoid permanent damage.
  • Use only LiFePo4-specific chargers with 3.65V cut-off.
  • Prevent terminal short circuits with insulated tools and protective covers.
  • Avoid crushing, puncturing, or exposing the battery to water.

Storage Guidelines

  • Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
  • Temperature: -10°C to 35°C (dry, non-condensing conditions).
  • Recharge Frequency: Every 6 months for batteries stored long-term.

Warranty & Disclaimer

  • Warranty: 24-month limited warranty against manufacturing defects.
  • Disclaimer: Warranty void if misused (e.g., over-discharge, extreme temperatures). Dispose per local regulations.
